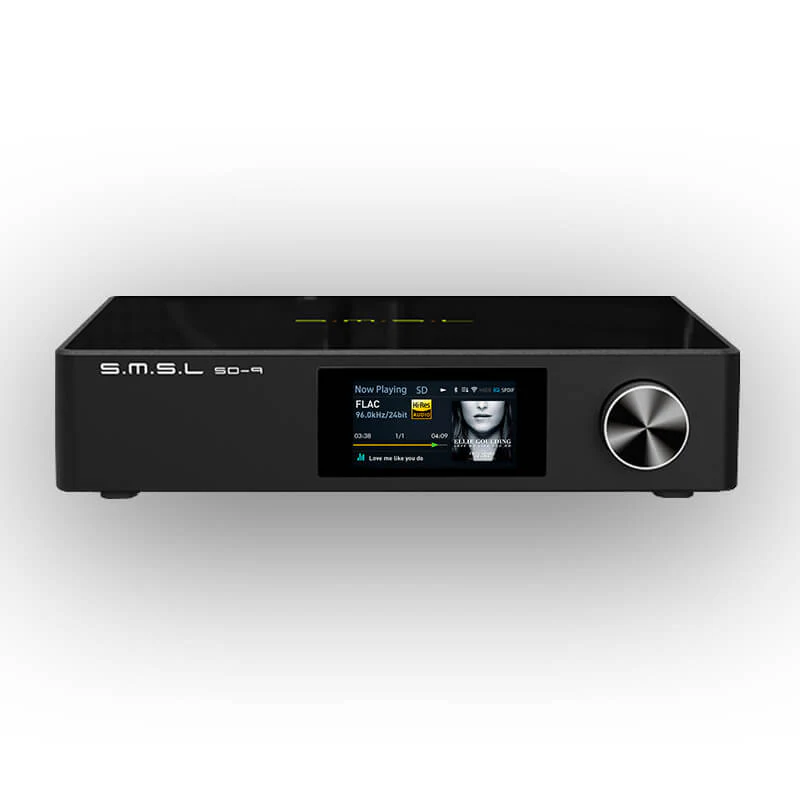

SMSL SD-9 SD9 MQA Desktop Network Player
Features:-
>Supports multiple audio formats including DSD, WAV, APE, Flac, Aiff, MP3, and more.
>MQA decoding support.
>1.9” full-view IPS LCD Display.
>Brand-new UI design.
>Supported Wired and Dual-band Wi-Fi connection(2.4GHz/5GHz).
>DLNA & Airplay support.
>Two-Way Bluetooth connectivity with AptX codec.
>USB DAC functionality.

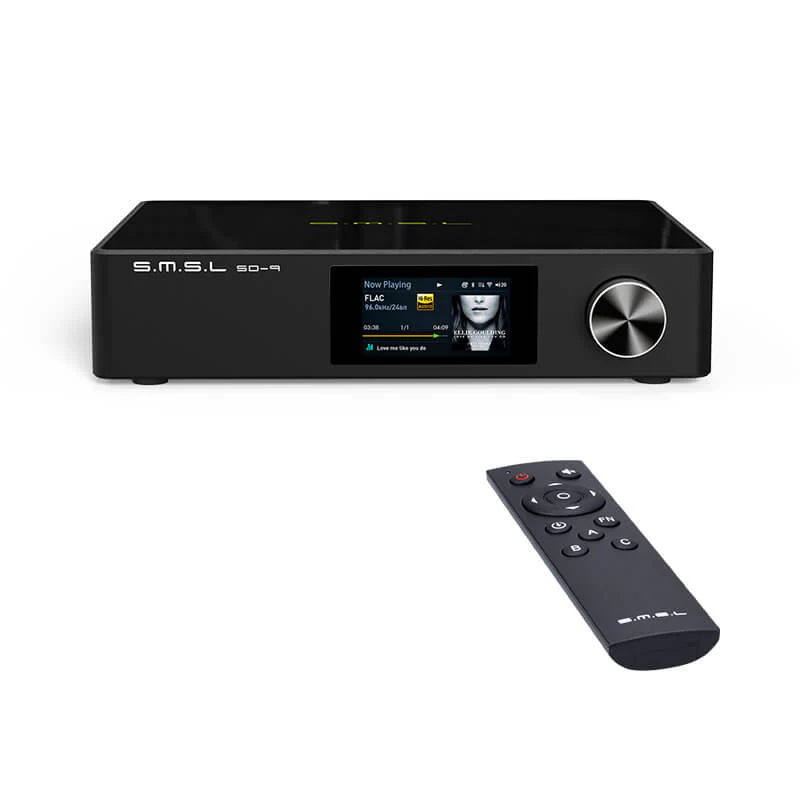

>Fully functional remote control.
>Built-in high-efficiency & Low-noise switching mode power supply.
>HiBy Link support.
Technical Parameters:-
>Input Options: 2xUSB-A, 1xUSB-B, MicroSD, Bluetooth, DLNA, Network Drive.
>Output Options: Optical, Coaxial, I2S, AES, Bluetooth, USB.
>USB Audio Decoding Support: PCM up to 32-Bit/384kHz, DSD up to DSD256.
>Supported USB HDD: Up to 4TB.
>File System: FAT/FAT32/NTFS.
>MicroSD Card Supported: Up to 256GB.
Meet the all-new network digital audio player, the S.M.S.L SD-9 featuring all the latest features to make your HiFi audio experience blissful. Connect your Audio drive via wireless and wired network and enjoy your full music library with the S.M.S.L SD-9. It supports playback for a wide array of audio file formats including the support for the latest MQA files.
Full-Featured Playback:-
S.M.S.L SD-9 is your one-stop solution for all your HiFi musical needs as the device supports playback for almost all the different audio file formats in the industry. It supports APE, WAV, WMA, FLAC, DSF, DFF, AIFF, M4A, AAC, OFF, MP2, MP3, and many more. Just plug in your HDD, your PC, or even connect your network drive using WiFi and enjoy your music to its fullest.
Specially-Developed SOC+CPLD Audio Architecture:-
S.M.S.L has designed a SOC+CPLD audio architecture for the SD-9, where the SOC is responsible for signal decoding and CPLD handles the clock management of the audio system. The audio Clock here is generated by 2 individual frequency clocks(22.5792MHz, 24.576MHz). This architecture effectively reduces the clock jitter and achieves precise audio playback resulting in clean and transparent audio performance.
Full MQA Support:-
Bring the MQA(Master Quality Authenticated) experience home with the latest SD-9 Network Music Player. It brings you the full support for the latest MQA files decoding and rendering ensuring a truly immersive experience for its users. In MQA high-resolution audio files are encapsulated to keep the file size small, suitable for streaming and storing locally. Only MQA certified devices are capable of unfolding these files and bringing the true output to their users.
Supports Multiple Input Options:-
There are multiple methods to feed the audio signal to the SD-9 Network Music Player. It supports Wireless & Wired NAS, USB Hard Disk, USB PC connection, USB Smartphone Connection, Bluetooth, and DLNA. Users can fully control the playback on the SD-9 using their smartphone with the help of the HiBy Link application.

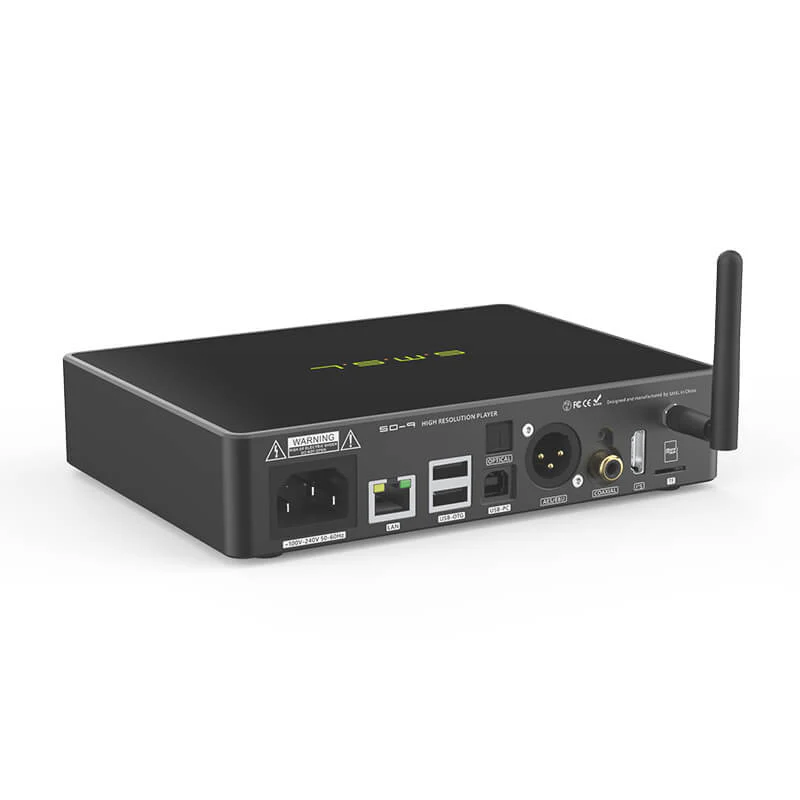

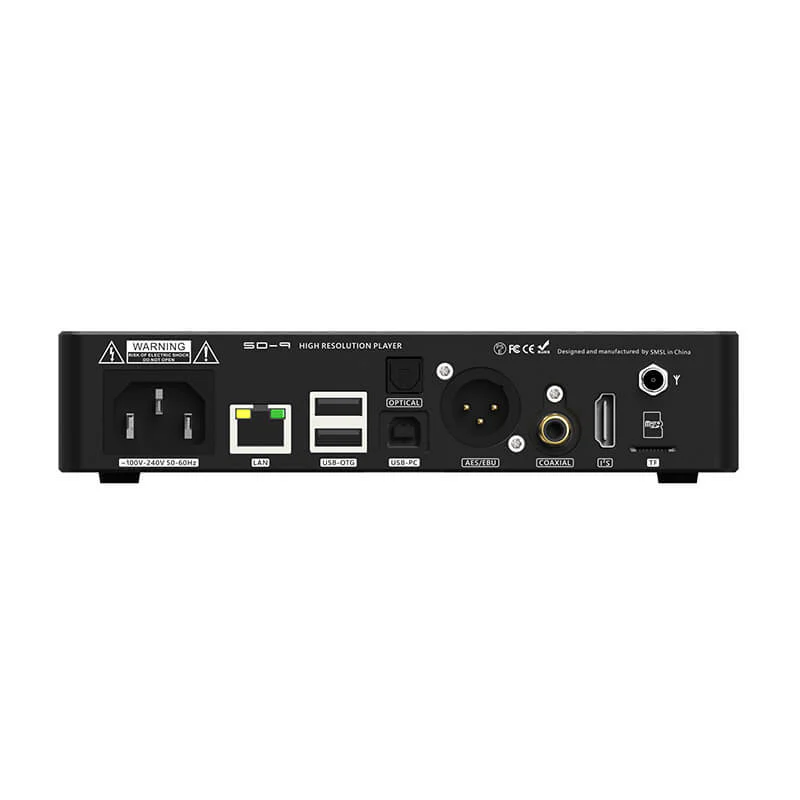

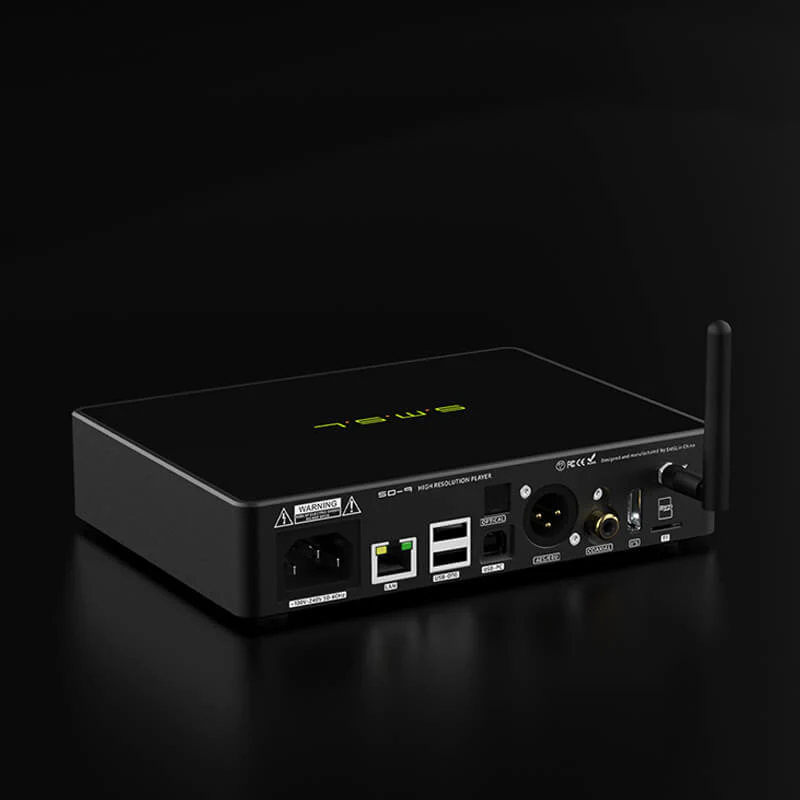

Fully Equipped Output Interface:-
SD-9 features multiple output ports to feed output to HiFi audio DAC in your chain. It supports Optical, Coaxial, I2S, AES/EBU, USB signal output that users can use to connect the SD-9 to their preferred choice of high-performance DAC.
