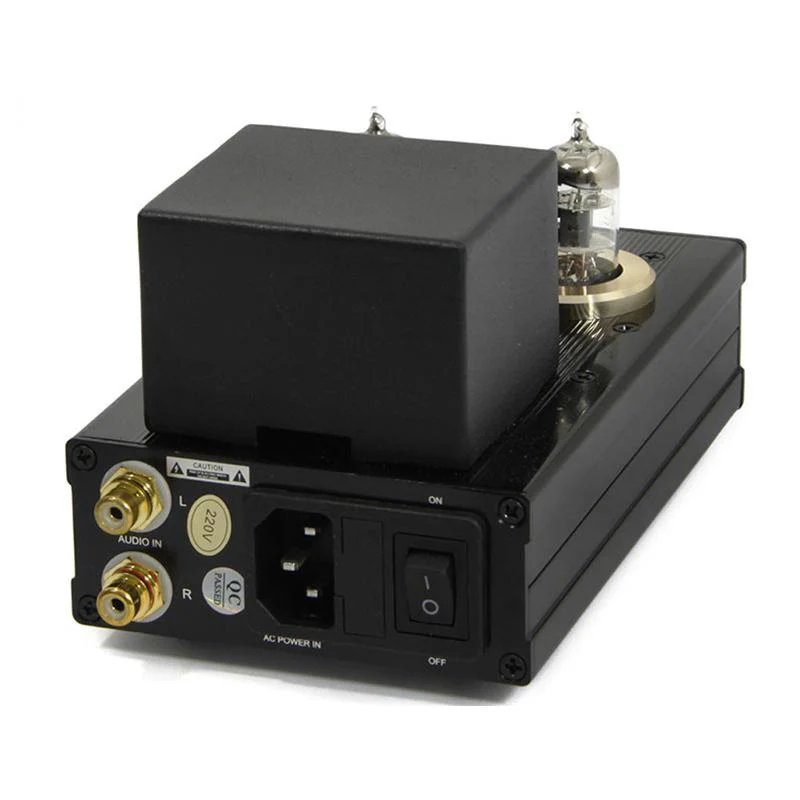

Little DOT I+ 6JI X2 Hybrid RCA input 6.35mm Output Headphone Tube Amplifier

• Brand Name: Little Dot
• Output Type: LINE OUT (AUDIO OUT)
• Input Type: LINE IN (AUDIO IN)
• Built-in Battery: No
• Recommended Headphone Maximum Impedance: 501-600 Ohm
• DSD (Direct Stream Digital): No
• Dimensions (WxHxD): 80x97x100 mm
• PCM: No
• Bluetooth: No
• Body Material: Metal
• Model Number: DOT I+
• Output Power: 800mW @ 32 ohms
• Package: Yes
• Type: Professional Amplifier
• Channels: 2 (2.0)
• WIFI: No

---SpecificationsSplit---



Features:

The Little Dot I+ is a hybrid transistor-vacuum tube headphone amplifier, which combines the smooth, musical sound of tubes with the high output current of transistors. The vacuum tube stage is run in Class-A, the MC33078 operational amplifier (socketed) provides voltage amplification, and BD139/BD140 transistors serve as output buffers.
