SHANLING ONIX XDA20 Dual ES9039PRO Desktop DAC & Headphone Amplifier

Dual ES9039PRO DAC chips, flagship audio core:-

XDA20 adopts the flagship ESS batongdao chip ES9039PRO used in the Miracle series, with dual DACs and high performance and specifications, supporting 768kHz/32-bit and DSD512.

Dual TALEMA transformer power supply, imported audio dedicated iron core, powerful filtering capacitor:-

XDA20 is powered by 15W+25W dual TALEMA transformers, providing strong and stable power supply. The imported audio specific iron core is pure and clear; Four 3300 μ F/63V VISHAY capacitors are used as power filters for stronger power supply.

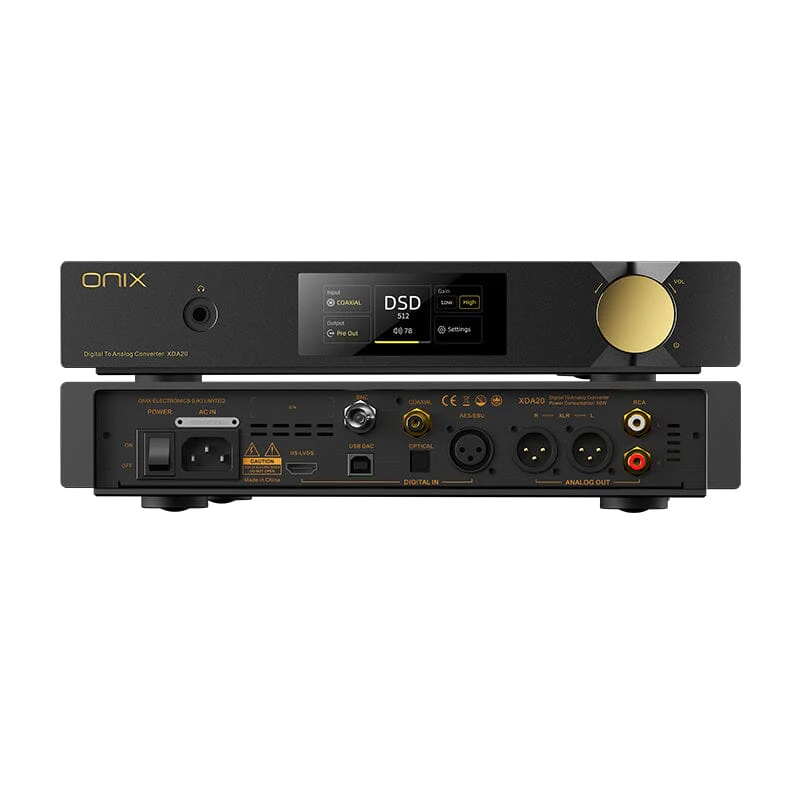

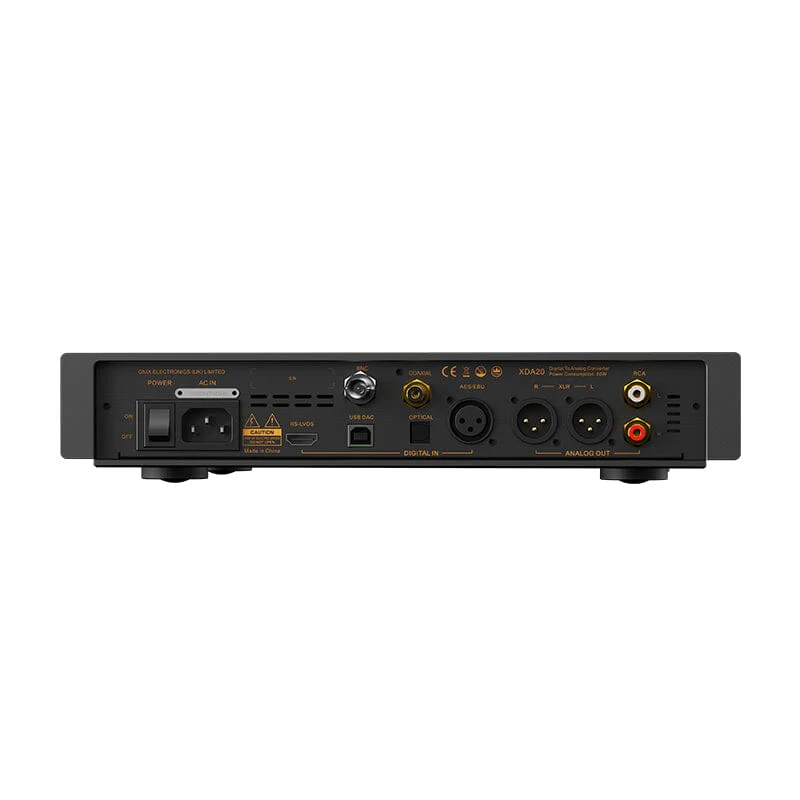

Supports multiple input/output methods and adapts to different devices:-

Digital inputs: COAXIAL/OPTIC/BNC coaxial/AES EBU/I ² S/USB DAC
Line output: RCA/XLR
Earphone output: 6.35mm
*Digital input support specifications:
SPDIF input: PCM: 192kHz/24bit, DSD: DOP64
I ² S input: PCM: 768kHz/32-bit, DSD: DSD512
USB DAC input: PCM: 768kHz/32-bit, DSD: DSD512

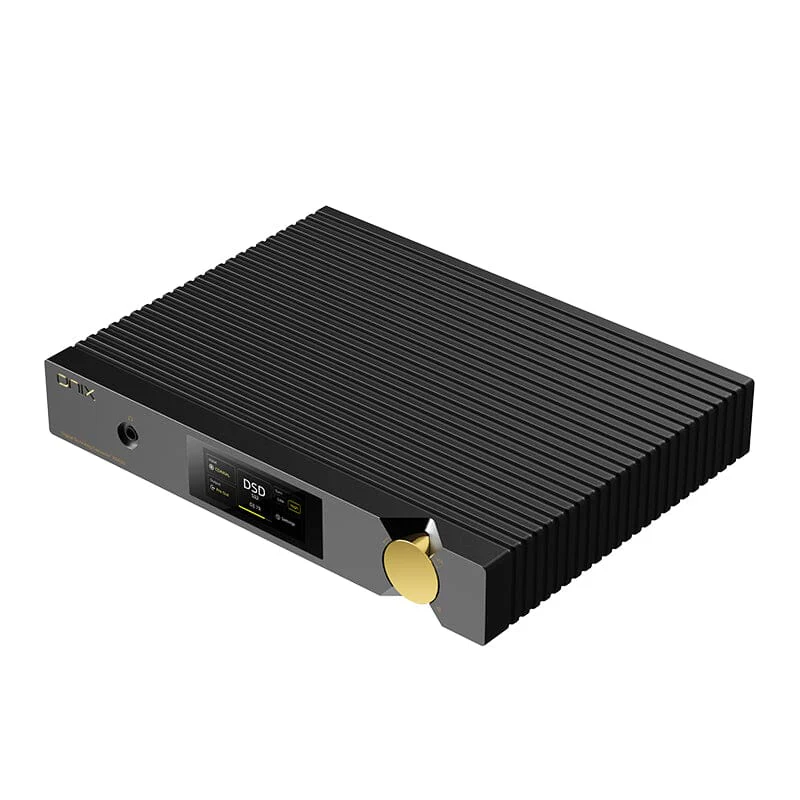

CNC machining of aluminum alloy body, precision machining for stable shock absorption:-

XDA20 adopts CNC Unibody integrated processing aluminum alloy chassis, exquisite craftsmanship, stable body

Self developed 'Brighton' efficient I/V architecture:-

XDA20 adopts ONIX's self-developed "Brighton" high-efficiency I/V architecture, using eight OPA1611 operational amplifiers, with high conversion efficiency and solid and delicate sound.

Efficient headphone amplifier circuit, supporting 6.35mm headphone output:-

XDA20 is equipped with OPA1612 high current headphone amplifier and a specially designed high-performance headphone amplifier circuit, with an output power of up to 1620mW@32 Ω.

3.4-inch touch color screen, Zenith series UI design:-

XDA20 is equipped with a 3.4-inch touch color screen, which can display various contents and support multiple function settings; Adopting the design language of Zenith XST20 family, simple design, elegant style.
