L.K.S Audio MH-DA005 DAC Decoder ES9038pro PCM384KHz DSD512 Dop64

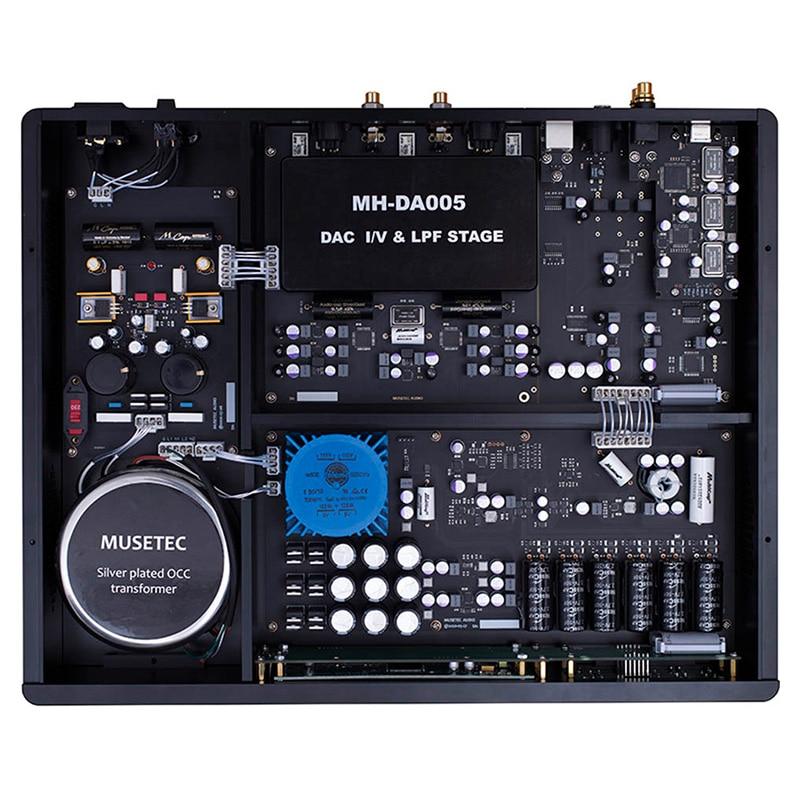

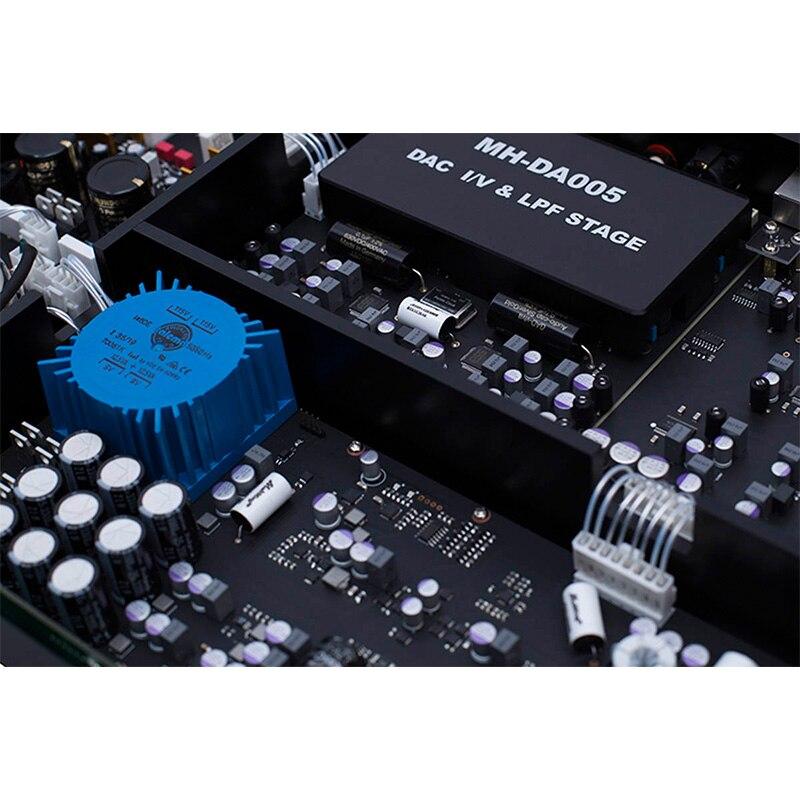

DA005 uses a large number of twin JFETs and twin transistors, and the accuracy of the circuit is higher. Balanced output and single-ended output have the same LPF low-pass filter circuit The DA005 whole machine (including USB circuit) uses four high-performance clocks, and the quality exceeds the Crystek CCHD957 and CCHD575 series widely used in high-end machines. Built-in high-performance USB interface: Specially designed high-performance USB interface, Italian Amanero solution, four-layer board design. Using multiple low-noise power supplies, three excellent low-sideband noise clocks (better than Crystek CCHD957).

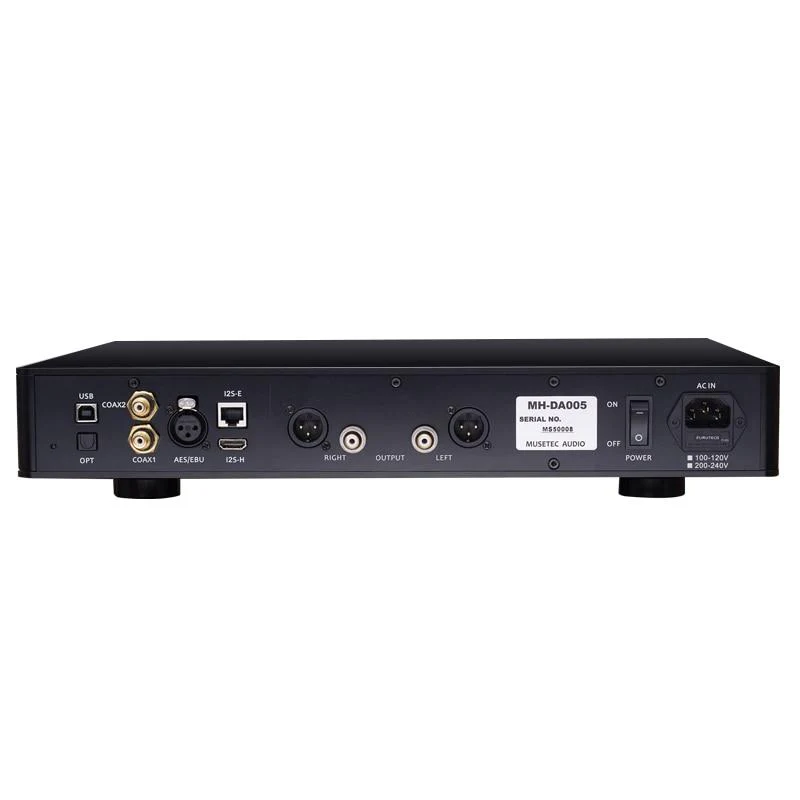

Product parameters: 1. Decoder chip ES9038pro x 2 2. Input Channels: USB, coaxial 1, coaxial 2, optical fiber, AES/EBU, I2S-E, I2S-H 3. Single-ended RCA output level:2Vrms 4. Balanced XLR output level:4Vrms 5. Digital volume attenuation function, with 0.5db interval attenuation, can be skipped 6. Digital filter mode optional 7. DPLL can be set 8. Can be set to the DSD channel exchange function 9. Can Be turned on and off to enhance the function 10. DOP (DSD over PCM) reception can be turned on and off 11. USB supports PCM44 ~ 384K, DSD64 ~ DSD512 12. I2S-E and I2S-H support PCM44 ~ PCM384K, DSD64 ~ DSD512, Dop64x 13. Coaxial, optical fiber, AES/EBU support PCM44 ~ PCM192K, Dop64 14. It's a fully functional remote. It's got remote standby function 15. VFD display with adjustable multi-level brightness and automatic rest screen 16. Dynamic Range > 136db 17. Distortion < 0.0002% 18. Stereo separation > 120db 19. Frequency response:0ー20 KHZ ± 0.2 db 20. Rated Power:16W 21. Size 430 * 350 * 78mm (Width * Depth * Height) , Height includes machine feet 22. Machine net weight:9.0 kg 23.Power supply voltage:100 ~ 120V or 200 ~ 240V optional

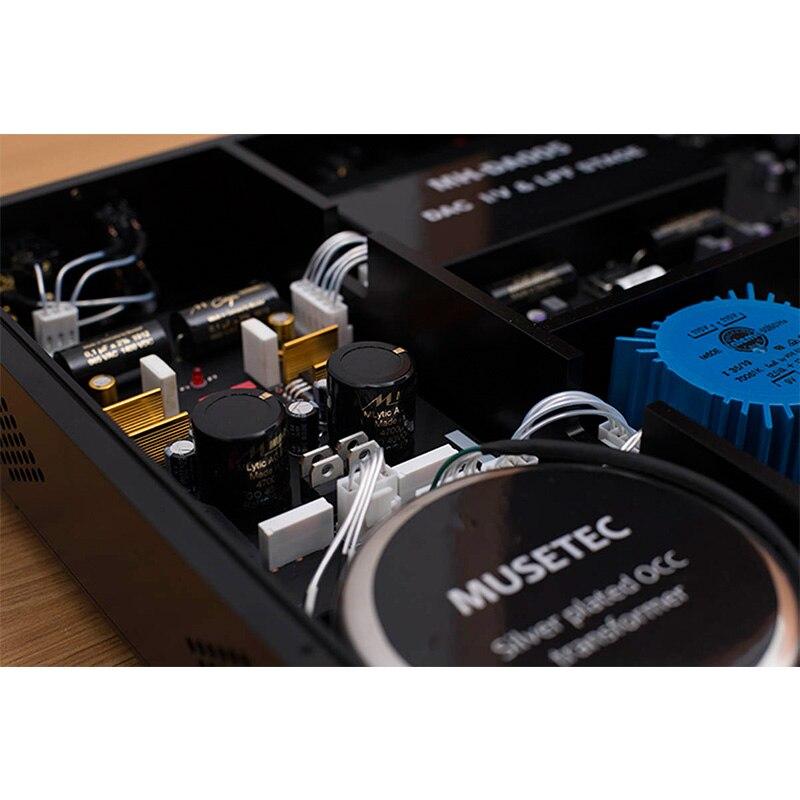

Feature Summary: 1. Musetec advanced regeneration power supply system,supplemented by sophisticated power monitoring circuit 2. High performance low noise regulators up to 18 channels 3. 4 very low sideband noise clocks 4. O type all single crystal copper plated silver cattle 5. New Analog power circuit structure 6. Silicon Carbide Diode without recovery time 7. Mundorf main filter capacitor, audionotte fast-sunny stepless capacitor, Mundorf Supreme capacitor, GAD gold-silver foil capacitor, MIT capacitor 8. 8-component discrete monomer circuit provides fully balanced and single-ended output, fully discrete design, twin pair tube, low temperature drift 5ppm non-inductive resistance 9. Tellurium copper plated teflon heart RCA output terminal with Durán, Ecuador Gold Silver Alloy lead 10. In-flight pure silver Jensen connection 11. Furukawa FI-03G power tail plug 12. The motherboard is made of six layers of heavy metal 13. High-grade aluminum case 14. Large VFD display
Packing list: 1.Remote control 2.American Standard Power Cord 3.USB cable 4.T2 Hexagon Screwdriver (For removing remote control to replace battery) 5.USB Flash Disk (Contains electronic file instructions, this machine no longer provides a paper version of the instructions) 6. Warranty card
Original: $3,299.00
-70%$3,299.00
$989.70
Description
DA005 uses a large number of twin JFETs and twin transistors, and the accuracy of the circuit is higher. Balanced output and single-ended output have the same LPF low-pass filter circuit The DA005 whole machine (including USB circuit) uses four high-performance clocks, and the quality exceeds the Crystek CCHD957 and CCHD575 series widely used in high-end machines. Built-in high-performance USB interface: Specially designed high-performance USB interface, Italian Amanero solution, four-layer board design. Using multiple low-noise power supplies, three excellent low-sideband noise clocks (better than Crystek CCHD957).
Product parameters: 1. Decoder chip ES9038pro x 2 2. Input Channels: USB, coaxial 1, coaxial 2, optical fiber, AES/EBU, I2S-E, I2S-H 3. Single-ended RCA output level:2Vrms 4. Balanced XLR output level:4Vrms 5. Digital volume attenuation function, with 0.5db interval attenuation, can be skipped 6. Digital filter mode optional 7. DPLL can be set 8. Can be set to the DSD channel exchange function 9. Can Be turned on and off to enhance the function 10. DOP (DSD over PCM) reception can be turned on and off 11. USB supports PCM44 ~ 384K, DSD64 ~ DSD512 12. I2S-E and I2S-H support PCM44 ~ PCM384K, DSD64 ~ DSD512, Dop64x 13. Coaxial, optical fiber, AES/EBU support PCM44 ~ PCM192K, Dop64 14. It's a fully functional remote. It's got remote standby function 15. VFD display with adjustable multi-level brightness and automatic rest screen 16. Dynamic Range > 136db 17. Distortion < 0.0002% 18. Stereo separation > 120db 19. Frequency response:0ー20 KHZ ± 0.2 db 20. Rated Power:16W 21. Size 430 * 350 * 78mm (Width * Depth * Height) , Height includes machine feet 22. Machine net weight:9.0 kg 23.Power supply voltage:100 ~ 120V or 200 ~ 240V optional
Feature Summary: 1. Musetec advanced regeneration power supply system,supplemented by sophisticated power monitoring circuit 2. High performance low noise regulators up to 18 channels 3. 4 very low sideband noise clocks 4. O type all single crystal copper plated silver cattle 5. New Analog power circuit structure 6. Silicon Carbide Diode without recovery time 7. Mundorf main filter capacitor, audionotte fast-sunny stepless capacitor, Mundorf Supreme capacitor, GAD gold-silver foil capacitor, MIT capacitor 8. 8-component discrete monomer circuit provides fully balanced and single-ended output, fully discrete design, twin pair tube, low temperature drift 5ppm non-inductive resistance 9. Tellurium copper plated teflon heart RCA output terminal with Durán, Ecuador Gold Silver Alloy lead 10. In-flight pure silver Jensen connection 11. Furukawa FI-03G power tail plug 12. The motherboard is made of six layers of heavy metal 13. High-grade aluminum case 14. Large VFD display
Packing list: 1.Remote control 2.American Standard Power Cord 3.USB cable 4.T2 Hexagon Screwdriver (For removing remote control to replace battery) 5.USB Flash Disk (Contains electronic file instructions, this machine no longer provides a paper version of the instructions) 6. Warranty card
